Description

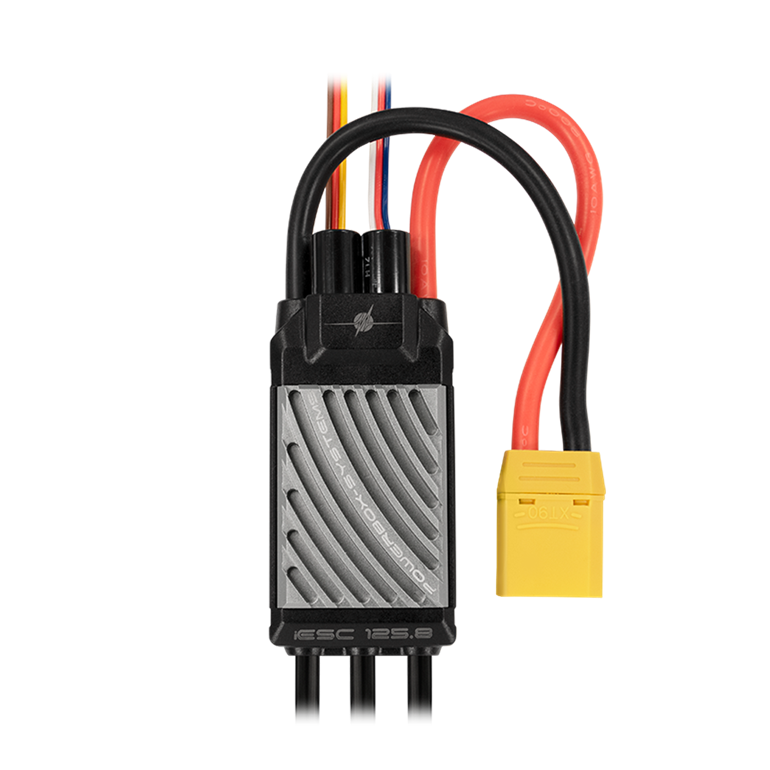

The iESC series is based on the latest generation of brushless motor controllers with 32-bit processor. Special functions - including telemetry, and direct parameter adjustment from the transmitter - make the iESC range stand out strongly from others on the market.
The high-performance micro-processor ensures smooth running of brushless motors with up to 40 poles, while the sophisticated case design provides optimum cooling.
The telemetry system is automatically detected for PowerBox, Jeti and Futaba systems. All iESCs deliver comprehensive telemetry data including battery voltage, current, consumed capacity, rotational speed and the controllers temperature.
Various parameters, including braking power, motor timing, direction of rotation, BEC output voltage, freewheel, helicopter mode and much more - can be set up directly from a PowerBox or Jeti transmitter.
Coded beep sequences and programming cards with jumpers are now a thing of the past.
A reliable, high-power, supplying current to the receiver via two 0.5mm² patch cables, rounds off the range of functions.
A buffer battery can be easily attached with the optional ESC-Backup ( Order No. 5117).
Data
Operating voltage | 3s - 8s |
Maximum load current | 125A / 135A Continous / Peak |
Output voltage | 6.0V / 7.4V / 8.4V BEC |
Signal input | PWM |
Supported RC systems | PowerBox, Jeti, Futaba, others without telemetry |
Supported telemetry systems | P²-BUS, EX-BUS, S.BUS2 |
Dimensions | 88 x 38 x 22 mm |
Weight | 133 g |
Temperature range | -20°C to +85°C |
Features
+ High-performance brushless speed controller with 32-bit technology
+ Latest generation of MosFets for reduced power loss and maximum reliability
+ Telemetry for PowerBox, Jeti and Futaba radio control systems
+ Fixed-wing and Helicopter modes
+ Adjustable direction of rotation, timing, battery type, freewheel, start-up
+ current and other parameters
+ Setting for gear ratio
+ Adjustable regulatory parameters in helicopter mode
+ Parameters directly adjustable from PowerBox and Jeti transmitters
+ Parameters adjustable using LCD programming device for all systems
+ 8A BEC
+ Power-on self-test checks motor, throttle position and voltage
+ Ingenious case design ensures optimum cooling
Set contents
1x iESC 65.8
Instruction manual in German and English
