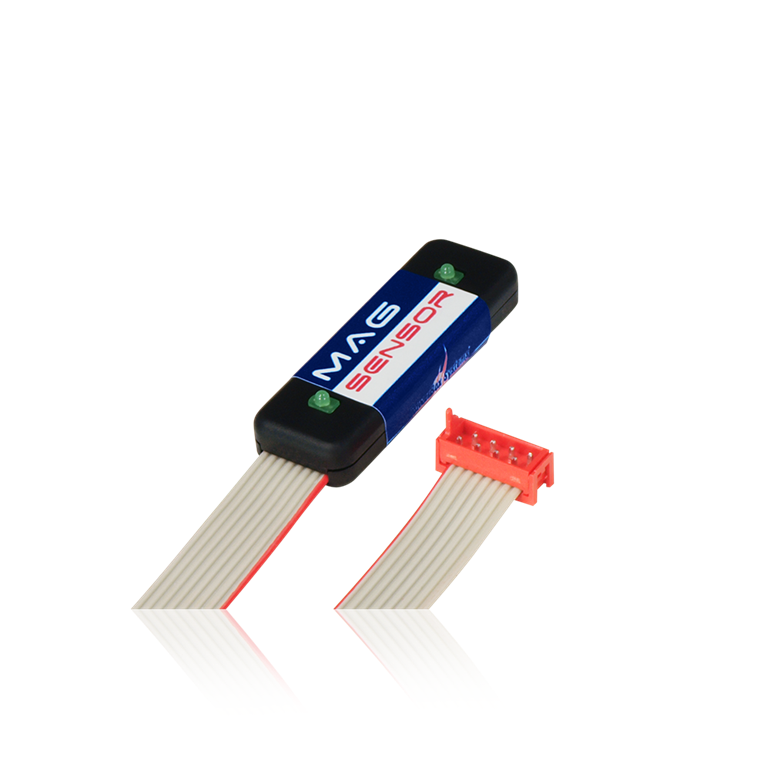

MagSensor - version 1

Order no.: 9040
The MagSensor represents an alternative method of operating and switching our PowerBox systems. Available with black or red connector.
37,00
incl. 19% Tax

Description

Data

Set contents

Downloads

Videos

Description

The MagSensor represents an alternative method of operating and switching our PowerBox battery backers. The circuit is based on modern, zero-contact "Hall sensors", which respond to a magnetic field by activating the electronic switches in the PowerBox. The Hall sensors do not switch the current, but simply pass on the switching signal.

This accessory is suitable for all PowerBox systems, regardless of age, which are designed to be switched on and off using the SensorSwitch. The basic purpose of the MagSensor is to switch the dual power circuits on and off, but it can also be used to reset the capacity display fitted to more recent systems, if this is an integral feature of the PowerBox. The SensorSwitch must still be used for programming servos and carrying out set-up tasks within the PowerBox's programming menu. The particular advantage of the MagSensor is that scale pilots can exploit all the advantages of our redundant battery backer systems, but without an exposed On / Off switch.

The magnetic trigger is powerful enough to penetrate reliably through thick GRP / CFRP walls panels, even if they are several millimetres thick.
In addition to a pair of green LEDs for visual monitoring, the MagSensor features a supplementary Piezo sounder, which confirms the On / Off switching process by means of beeps of different pitch.
The MagSensor activates both switching circuits together. So it´s ensured that both circuits are activated when the model is turned on.
If you are using a PowerBox System with an integral capacity counter, the MagSensor can also be used to reset the residual capacity display.

Version 1, Order no. 9040 fits for: Evolution, Professional, Cockpit, Competition, Cockpit SRS, Competition SRS, Baselog
Version 2, Order no. 9045 fits for: Royal SRS und Royal SR2, Champion SRS, Mercury SRS and Mercury SR2, Competition SR2, Source

Data

Current drain Power-on state 10mA
Current drain Standby 20µA
Weight 10 g
Temperature range -30°C to +75°C

Set contents

+ MagSensor with 40 cm connecting lead
+ Magnet sensor with ring magnet
+ Double-sided adhesive tape
+ Keyring
+ Key fob
+ Operating instructions in German and English
